This installation provides adequate smelting and spheroidization of microfine powder materials and synthesis from gas phase.

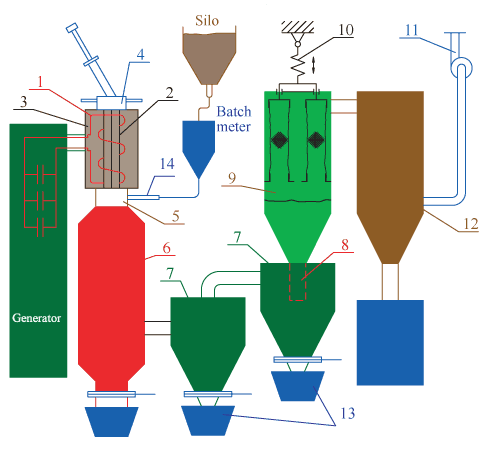

          Block diagram of BЧИ-500 installation

1 - inductor; 2 - quartz discharge chamber; 3 - plazmatron boddy; 4 - turbulizer; 5 - adaptor;
6 - reactor; 7 - cyclone; 8 - heat exchanger; 9 - sleeve filter; 10 - control system; 11 - ejector; 12 - filter body; 13 - charging bin

Functional electrical diagram of ВЧИ-500 installation

1 - switchboard; 2 - three phase power control;
3 - one phase power control; 4 - anodic power transformer;
5 - high-voltage braker; 6 - electric panel of high-voltage rectifier;
7 - generator uni; 8 - block of capacitors; 9 - high-frequency induction-type plazmatron;
10 - control panel.
